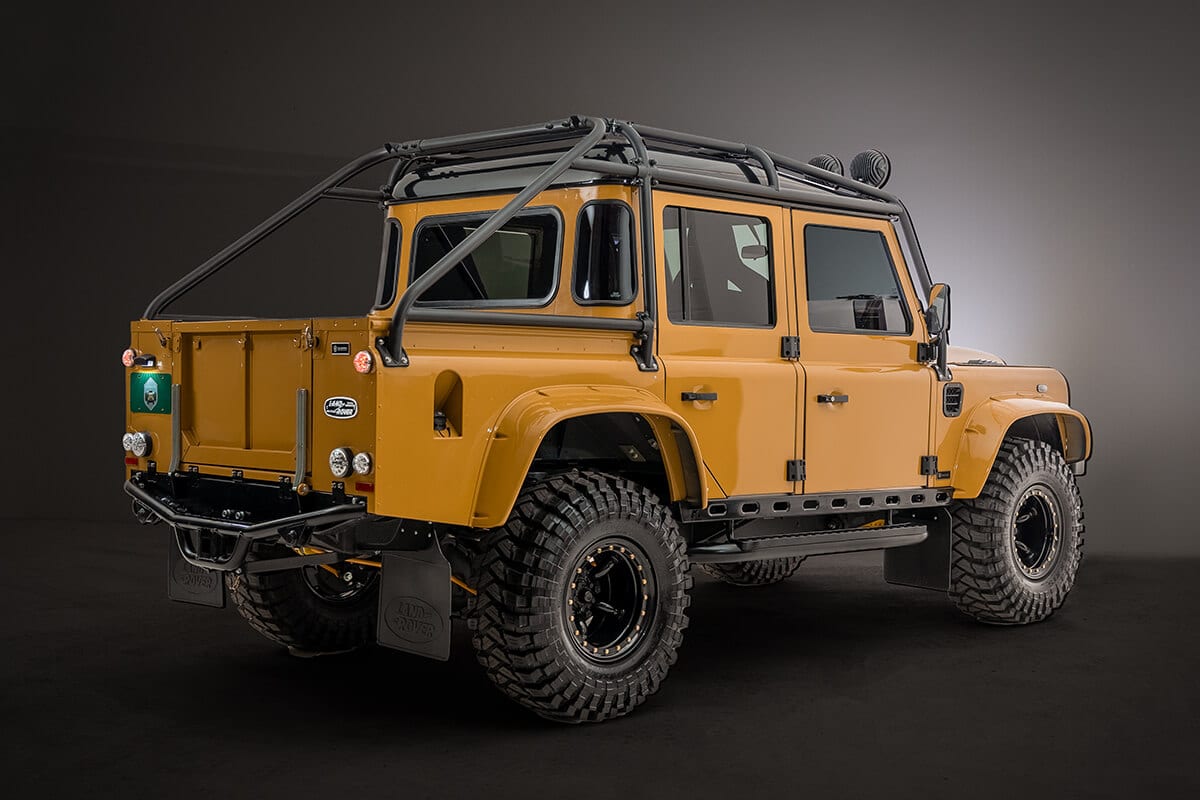

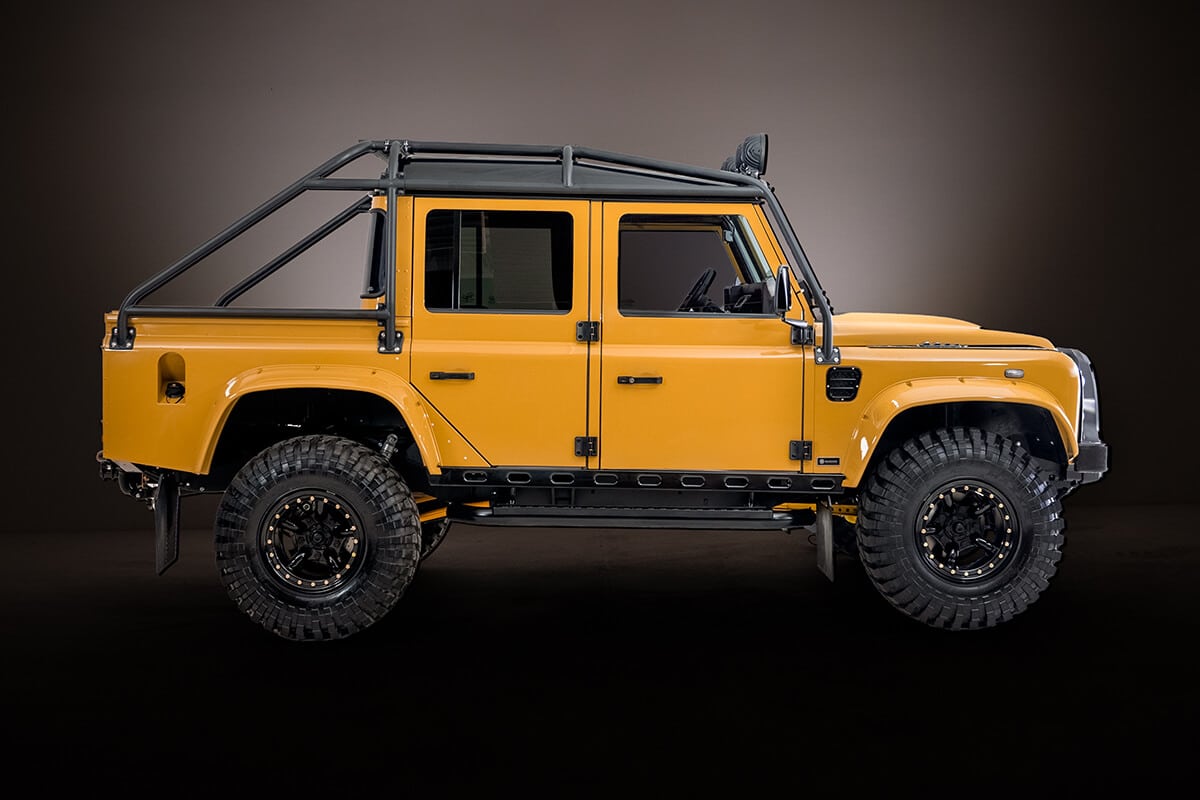

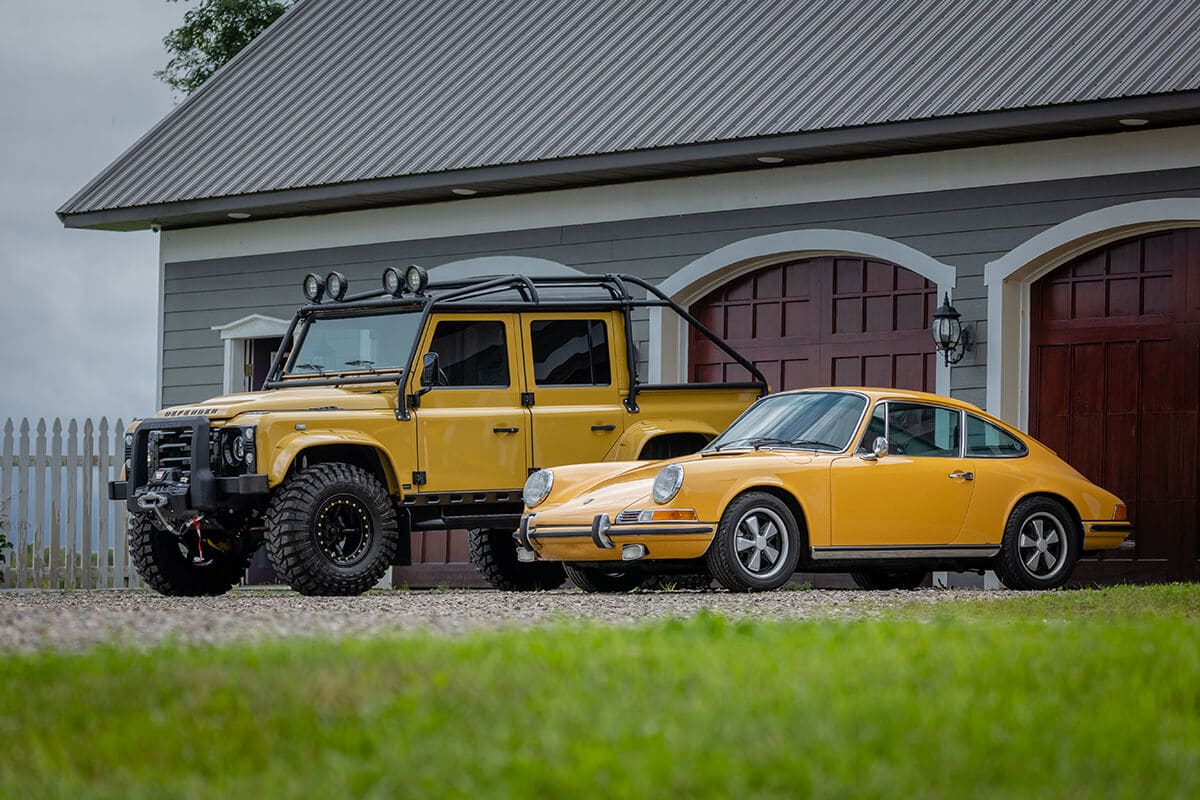

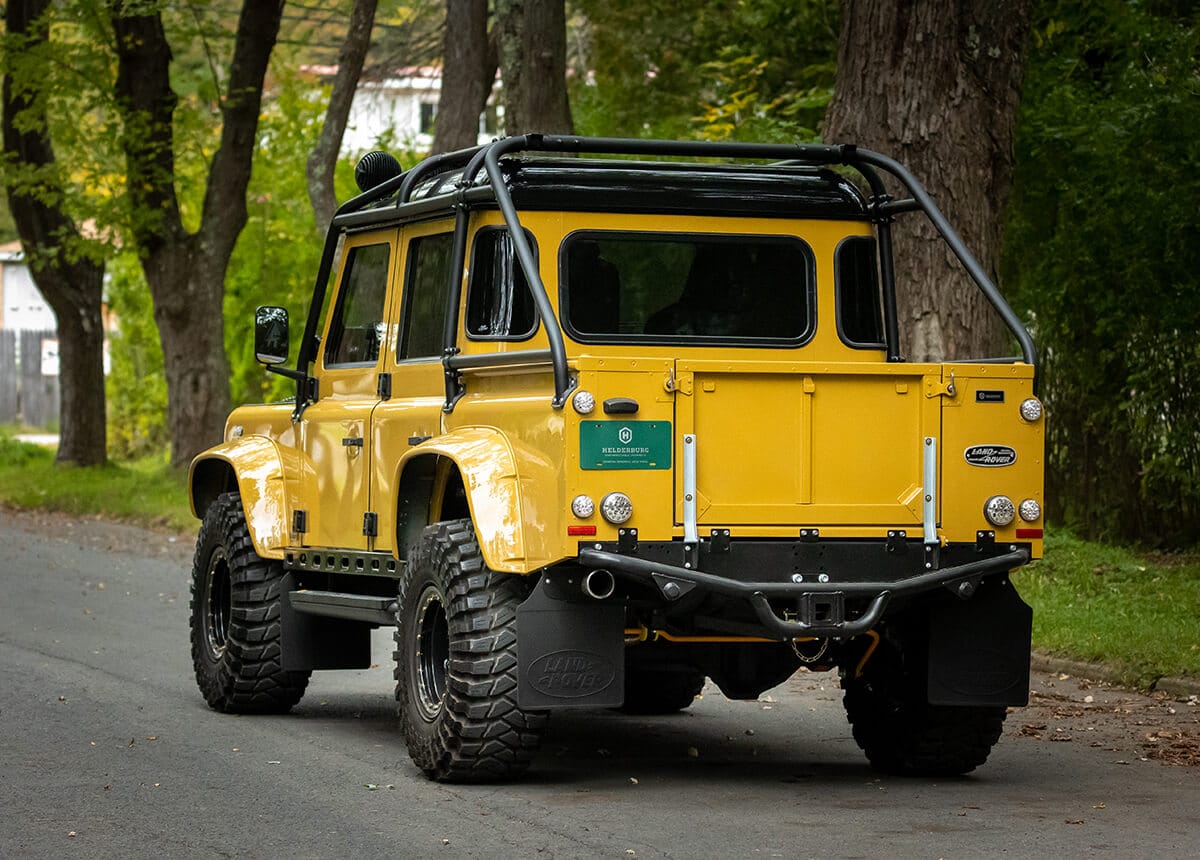

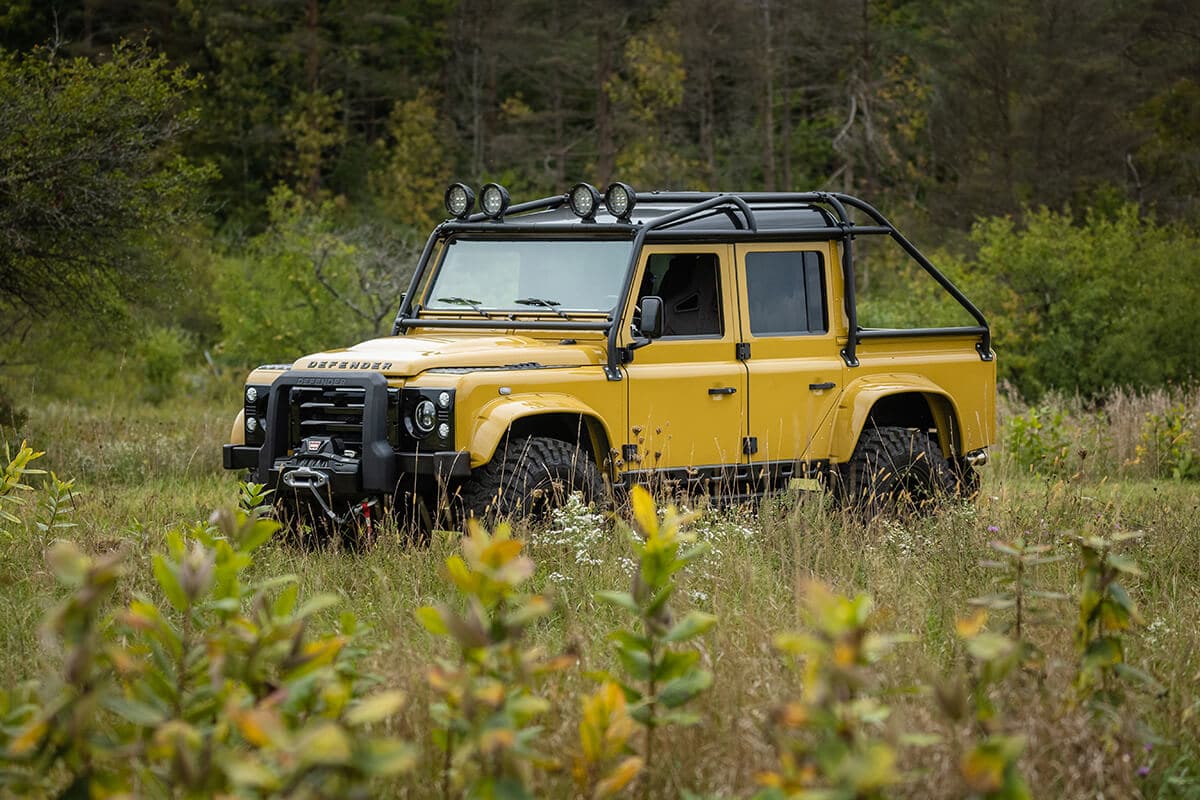

If you have seen Spectre, you remember the Defenders. Lifted 110 Double Cabs on big tires, built for one chase through the mountains. Bayeux is my take on that truck, built to be driven every day instead of once for the camera.

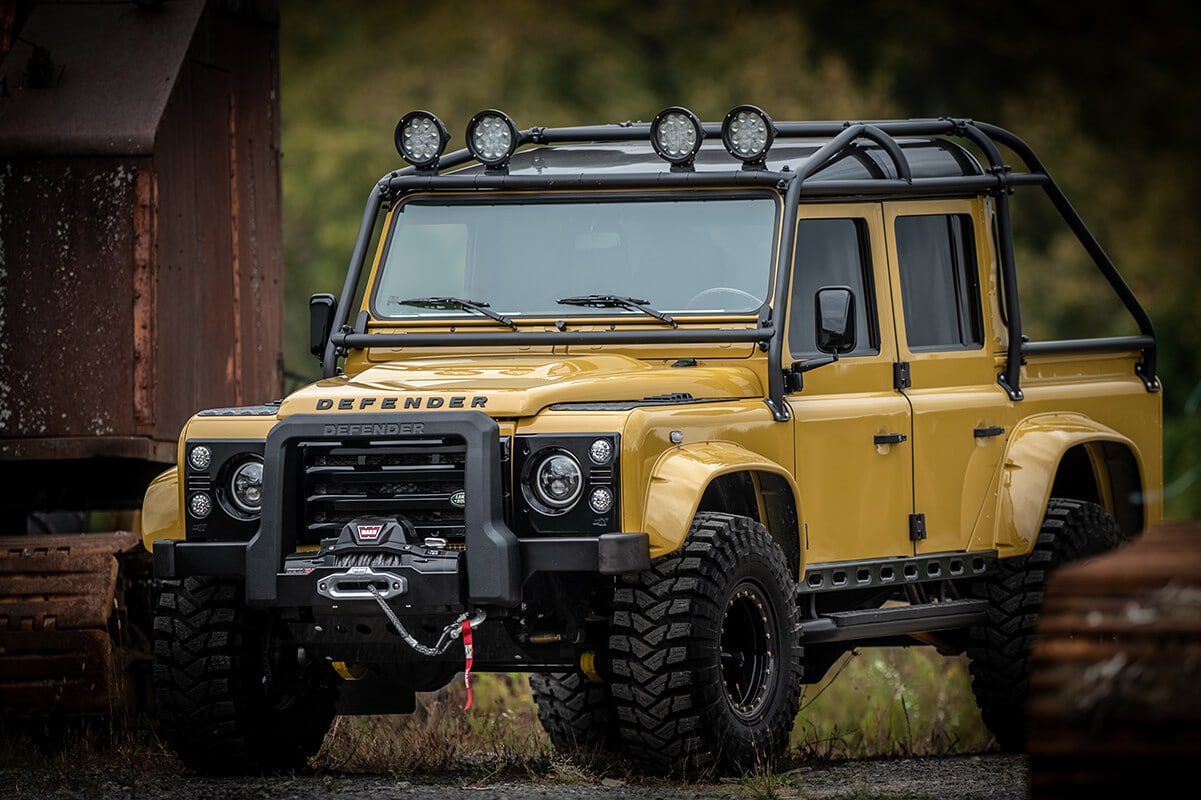

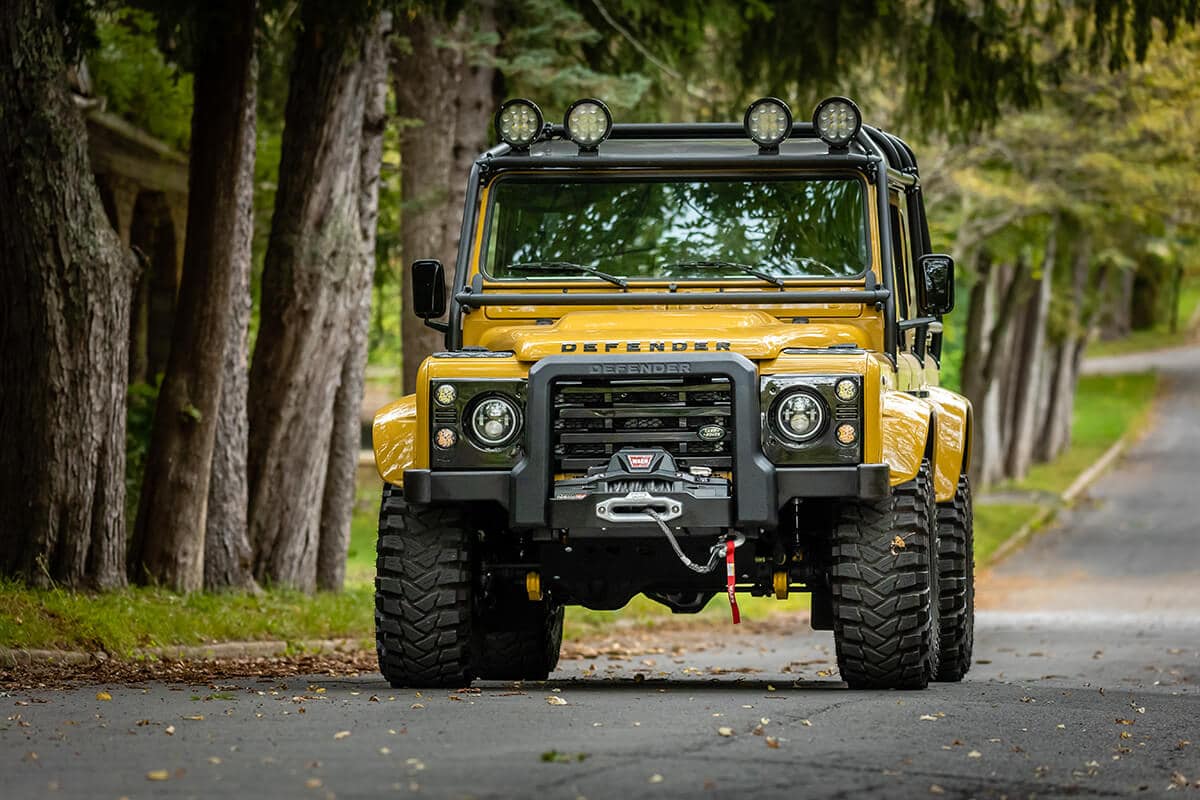

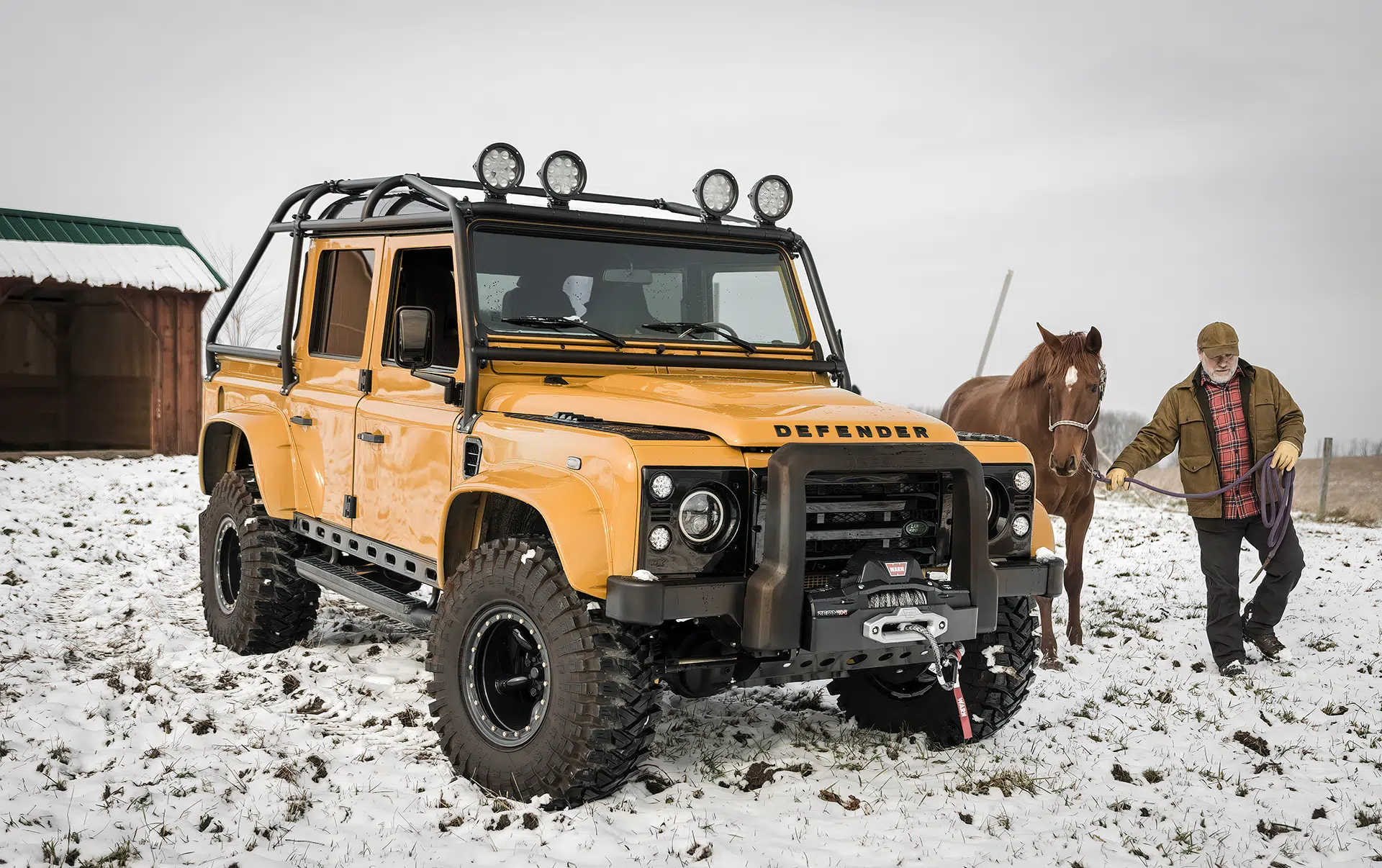

It starts as an original 1996 Defender 110 Double Cab Pick Up. Underneath is a 300Tdi performance build with a VNT turbo, a heavy duty five-speed manual, Salisbury axles and helical limited slip differentials. Nearly three inches of suspension lift on Fox shocks clears 35-inch Maxxis tires on beadlock wheels. Up front, a tri-level steel bumper carries a 10,000 lb Warn winch, and a six-point roll cage ties the body to the frame.
Inside, it is the opposite of a stunt truck. The Mulliner interior package wraps the cabin in chocolate quilted leather and coffee brown Alcantara, with heated seats, a heated windshield and full sound and weather insulation. The color is a custom Helderburg mix, Bahama Gold Pearl. It was this color that led to a second Double Cab, Toru.
Read the full walkaround notes.
If Bayeux speaks to you, I would be glad to build yours.

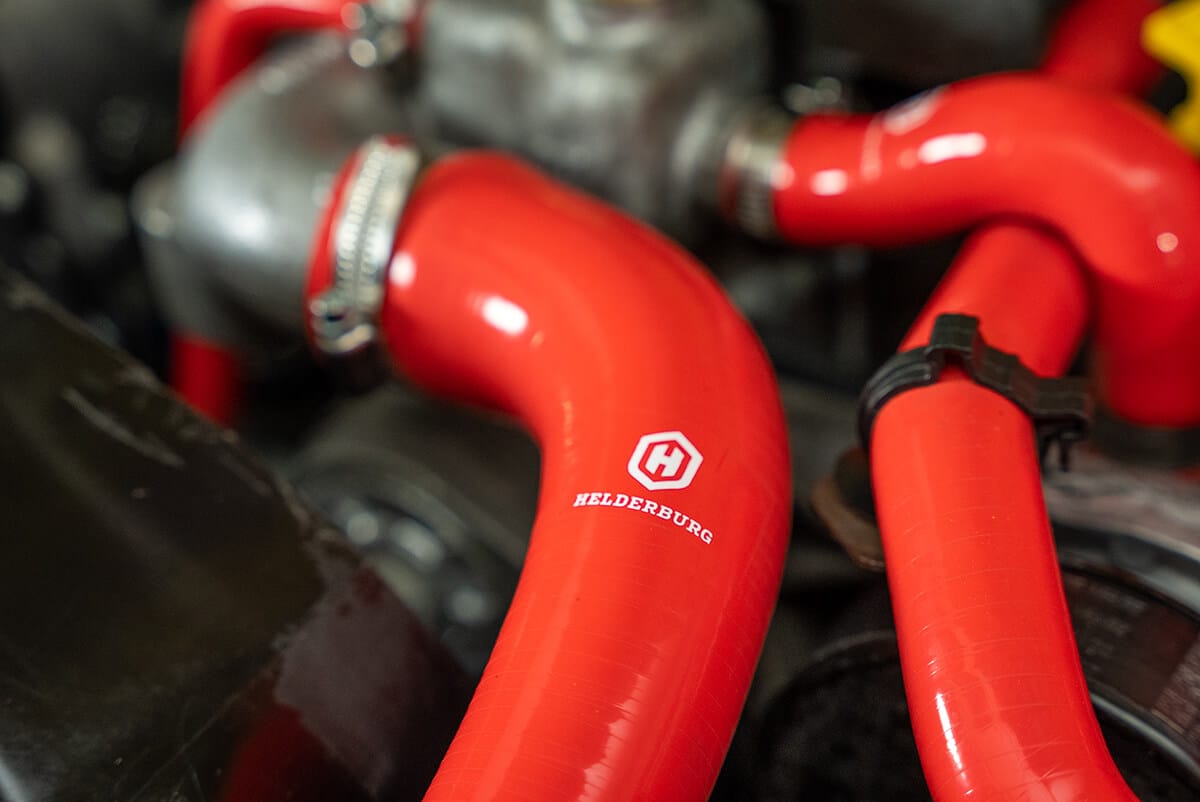

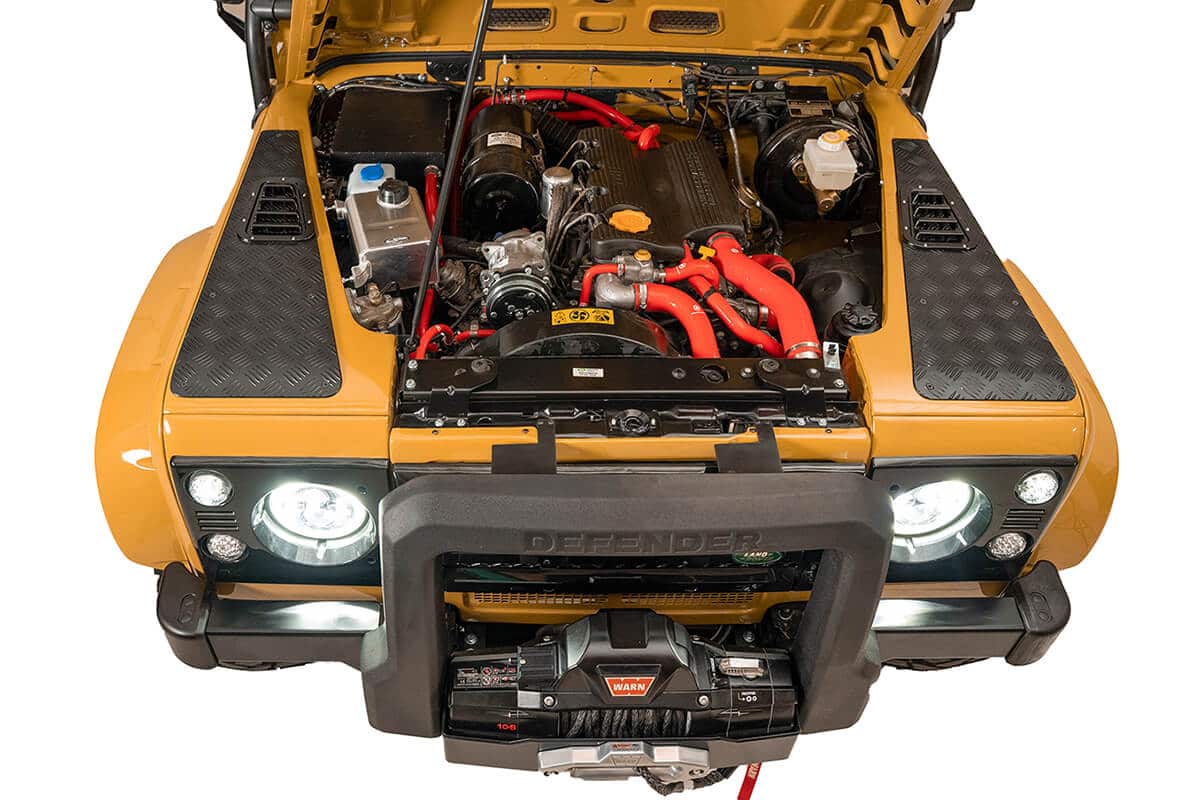

Engine and Drivetrain
- 300 TDI Performance Build
- VNT Turbo
- Performance Cylinder Head
- Custom Built Injection Pump
- Bosch Injection Modified
- Custom Quadcore Full-Width Intercooler
- EGT Modified
- Helderburg 3″ Straight-Through Performance Exhaust
- XL Aluminum Radiator Pack
- 5 Speed Manual Heavy Duty Transmission, Re-Geared for 35″ Tires
- Heavy Duty Prop Shafts
- Heavy Duty Transfer Gear Box
- Heavy Duty Salisbury Axles
- Automatic Torque Biasing Helical LSD Differentials
- Power Assisted Steering
Suspension and Off-Road
- Nearly 3″ Suspension Lift (No Body Lift)
- Fox Racing 2.0 Performance Shocks
- Fox Racing Shox Progressive Coilover Springs
- Front and Rear Anti-Roll Bars
- Custom Coil Spring Isolators
- 3 Degree Radius Arms
- 16×12.5 Beadlocker Wheels, No Wheel Spacers
- 35″ Maxxis Bi-Ply Trepador Tires
- Cross-Drilled Rotors with Larger Calipers
- 4mm Protection Plates

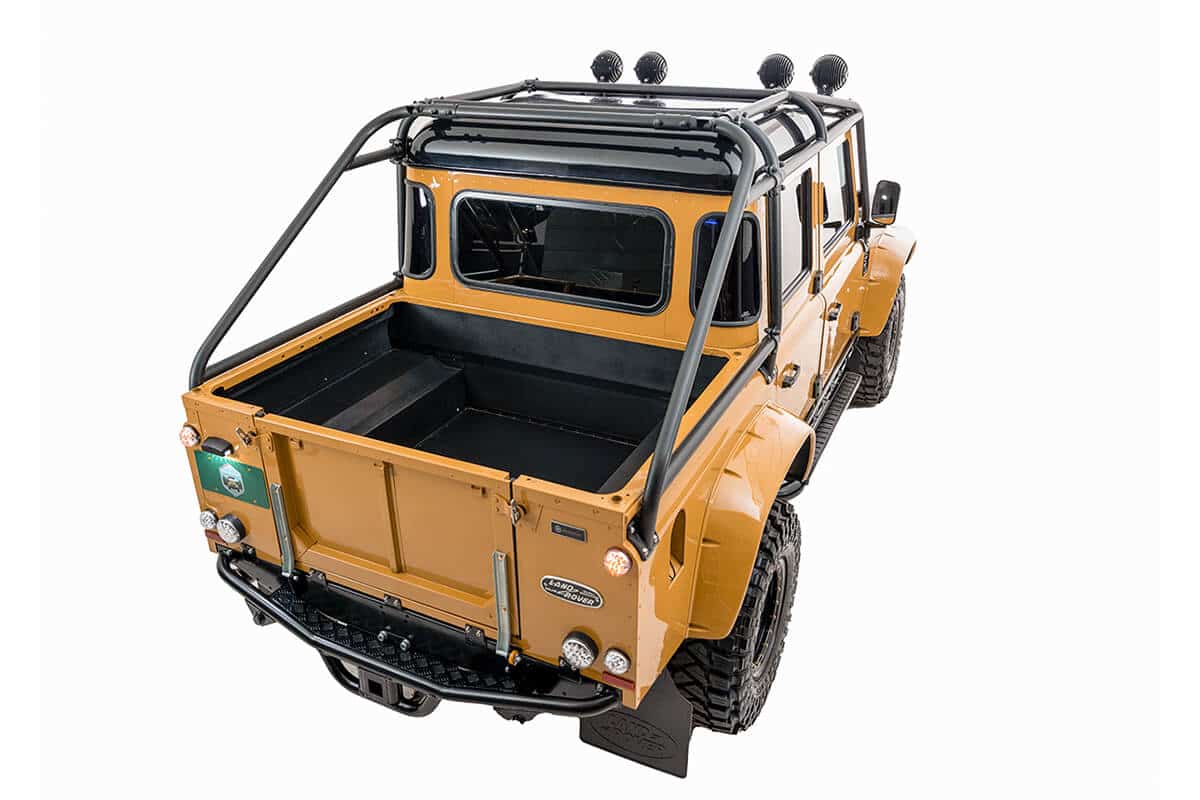

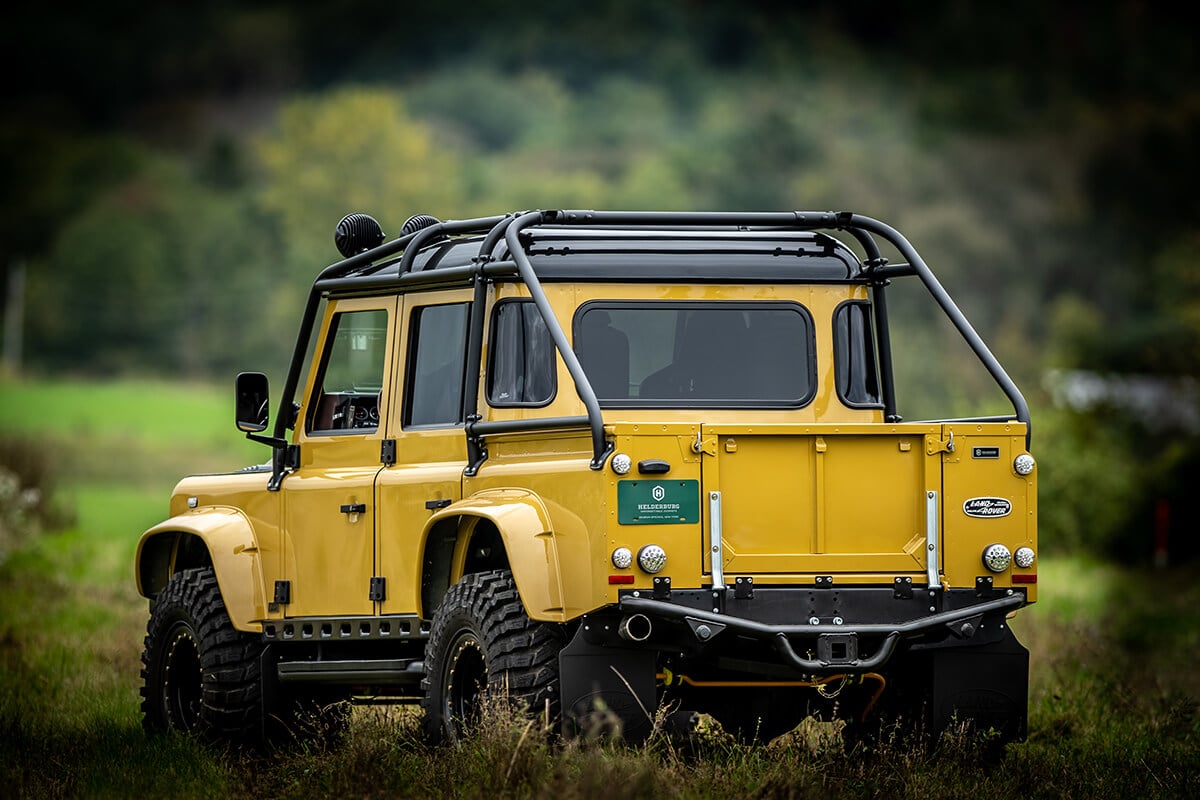

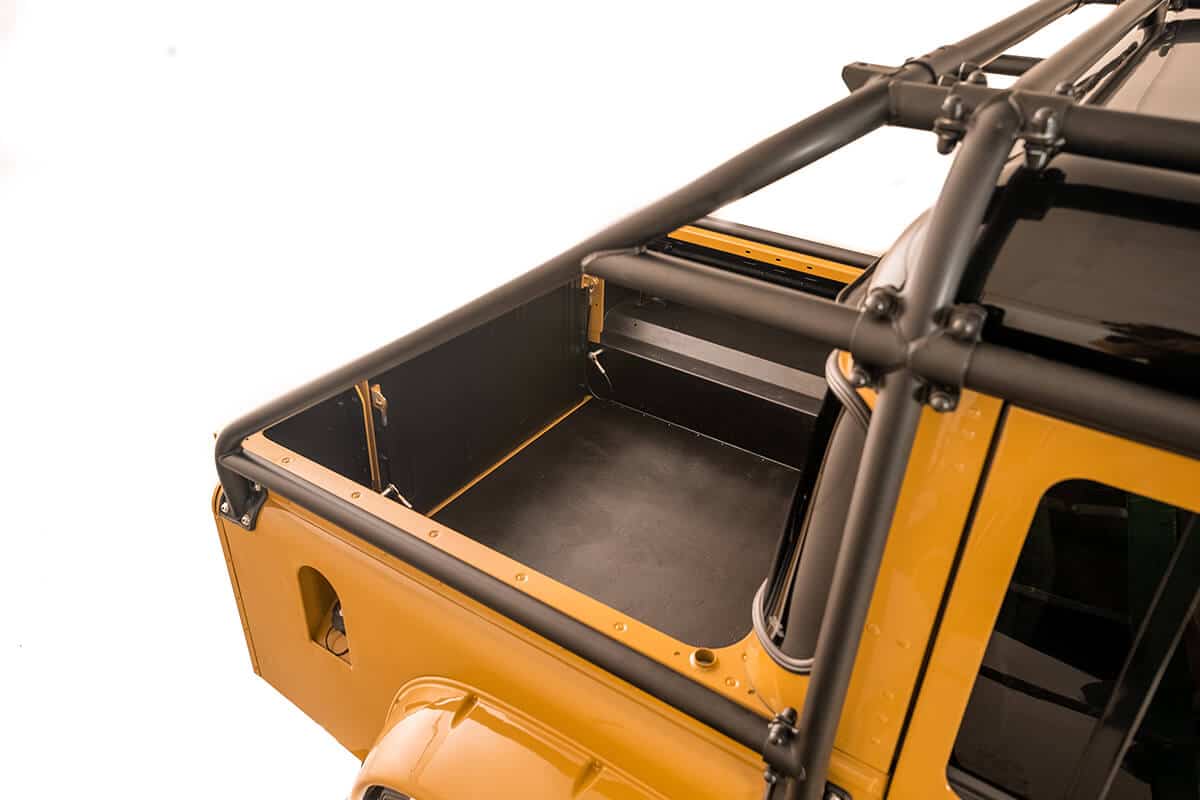

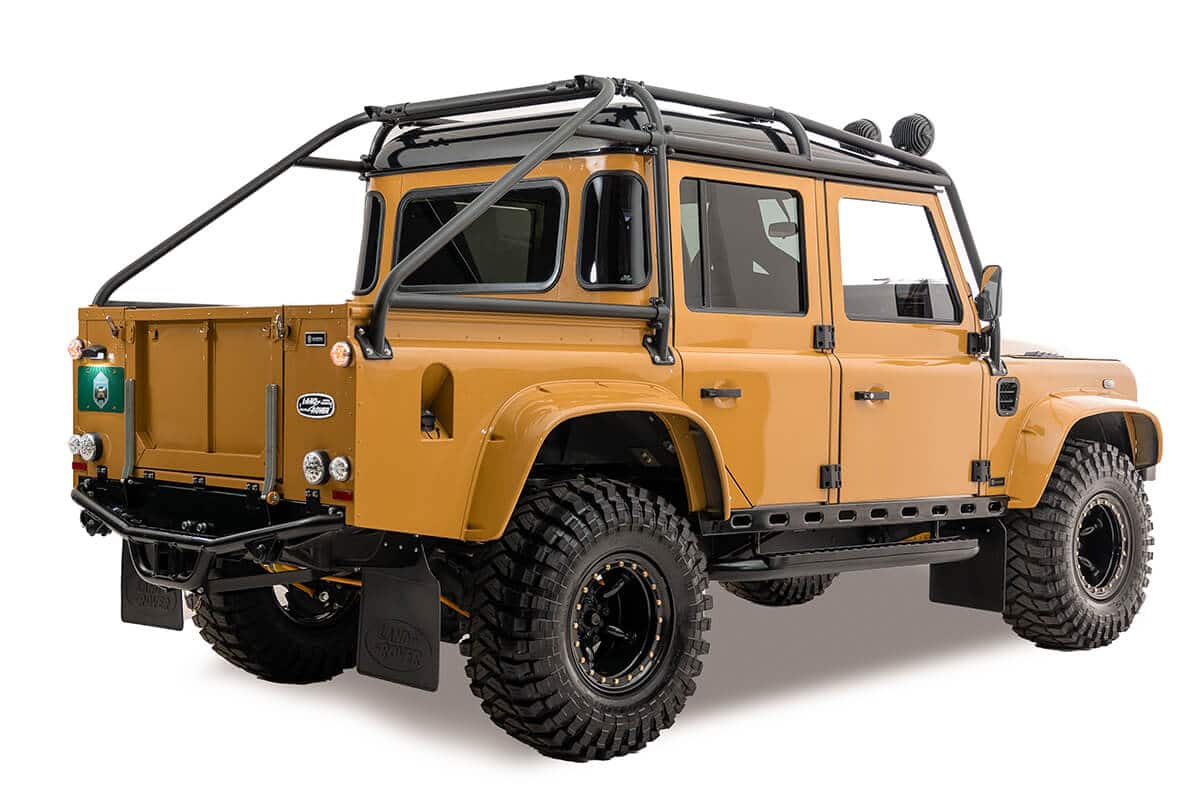

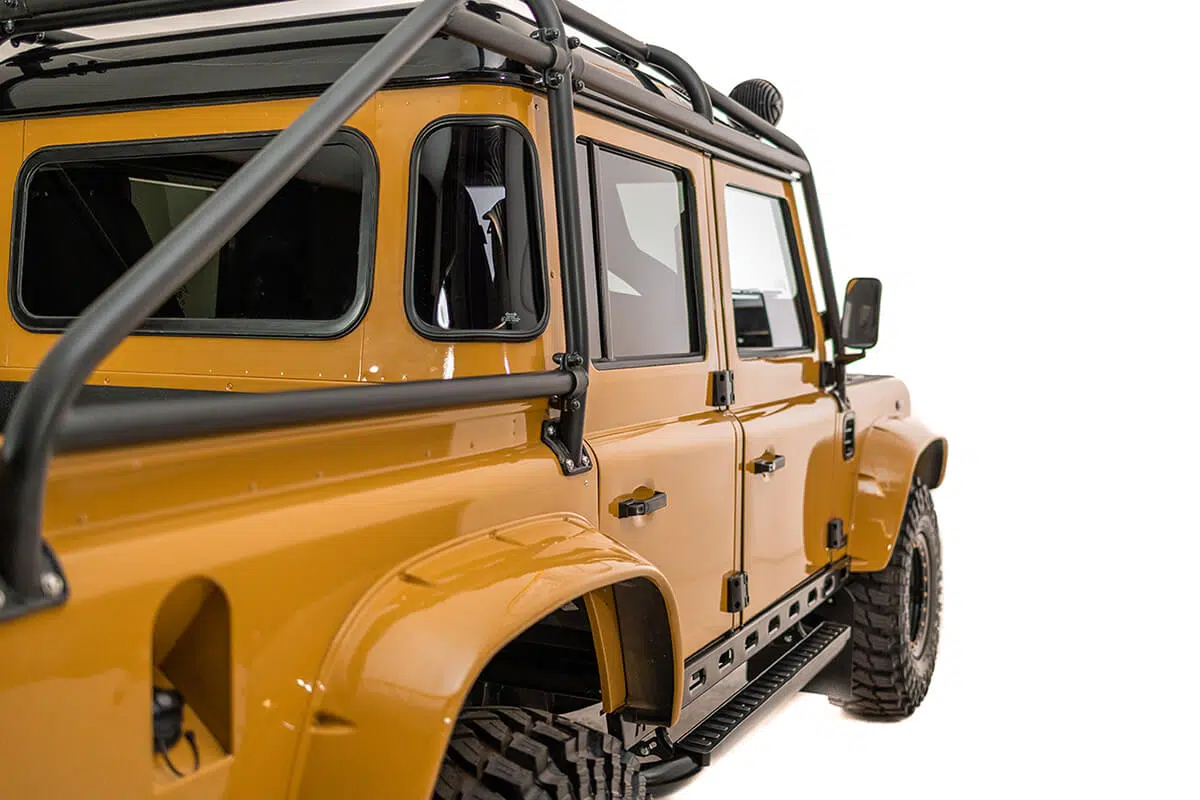

- Safety Devices Six-Point Roll Cage, Welded and Bolted to the Frame
Exterior
- Custom Helderburg Color Bahama Gold Pearl Body and Roof

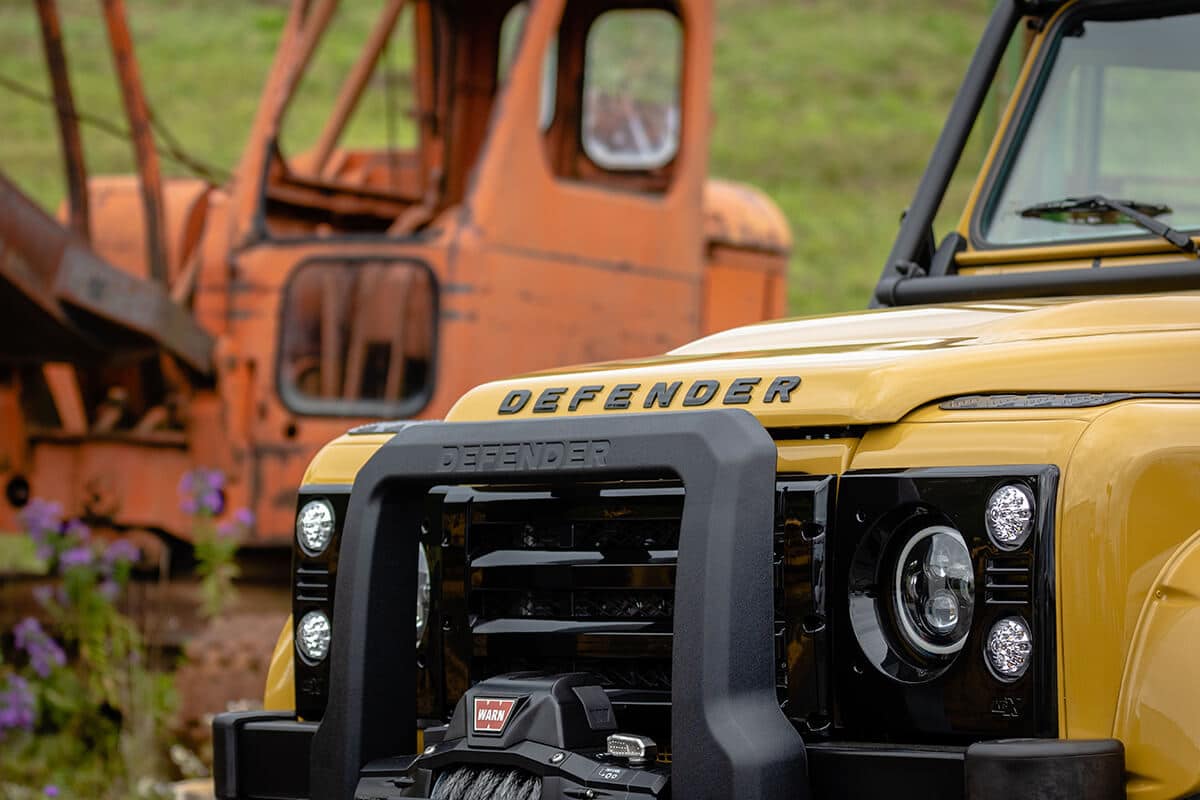

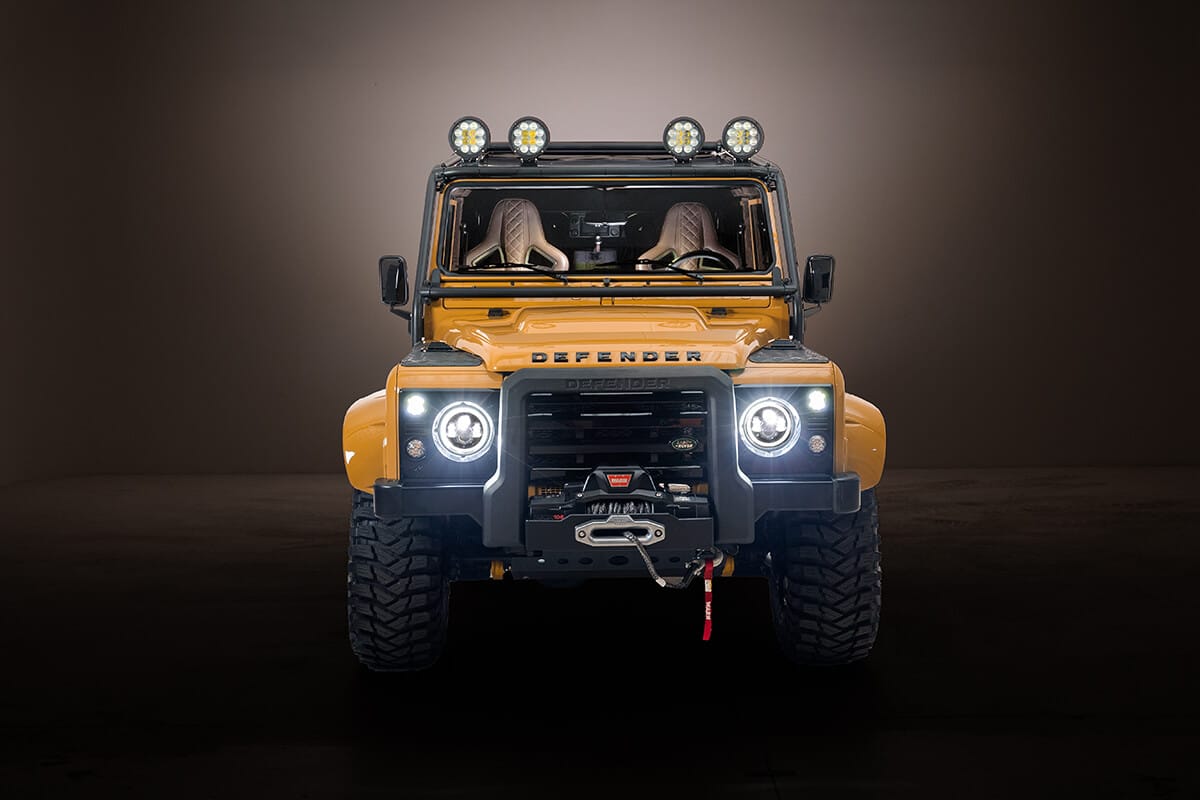

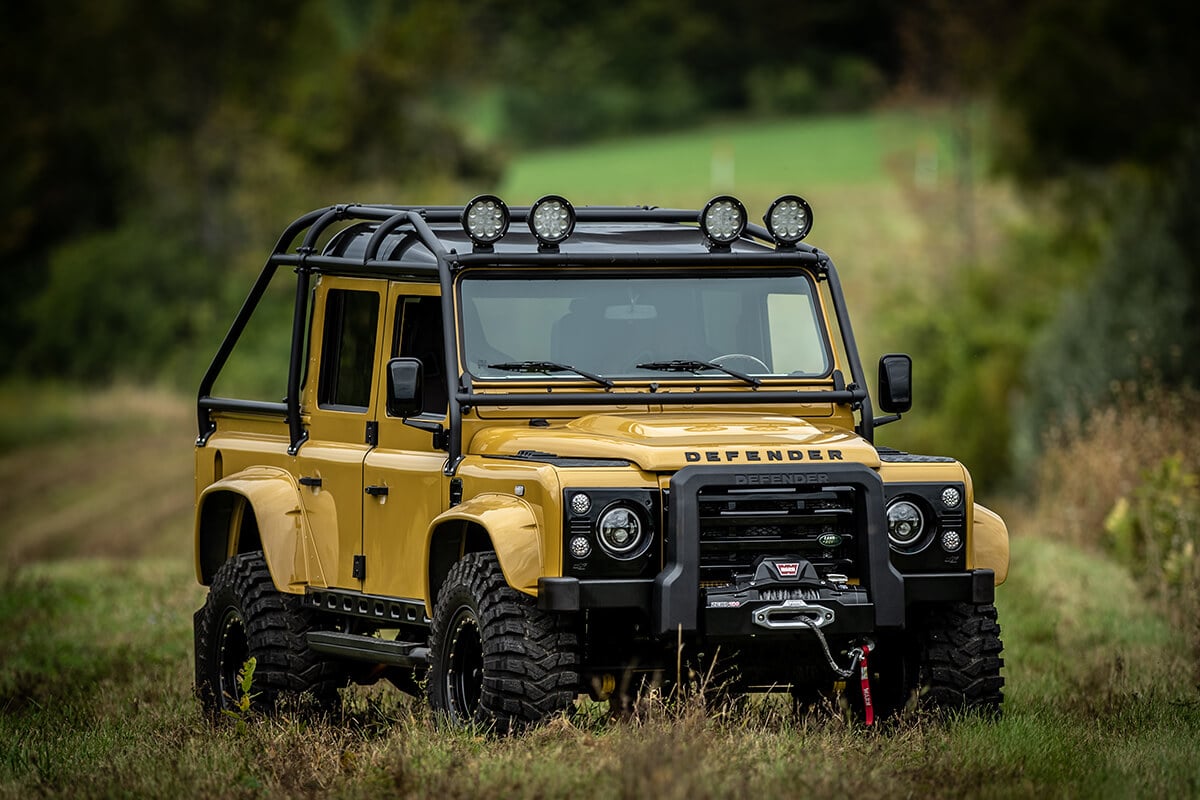

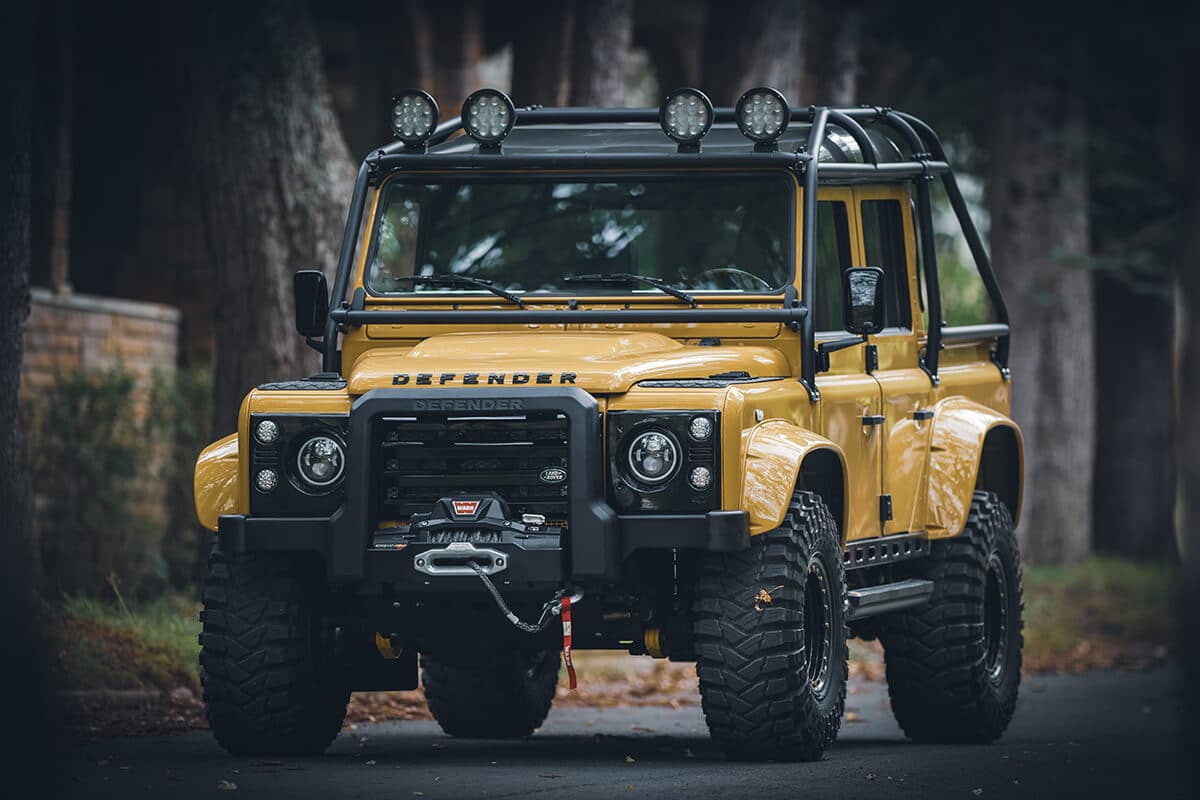

- Tri-Level Steel Bumper

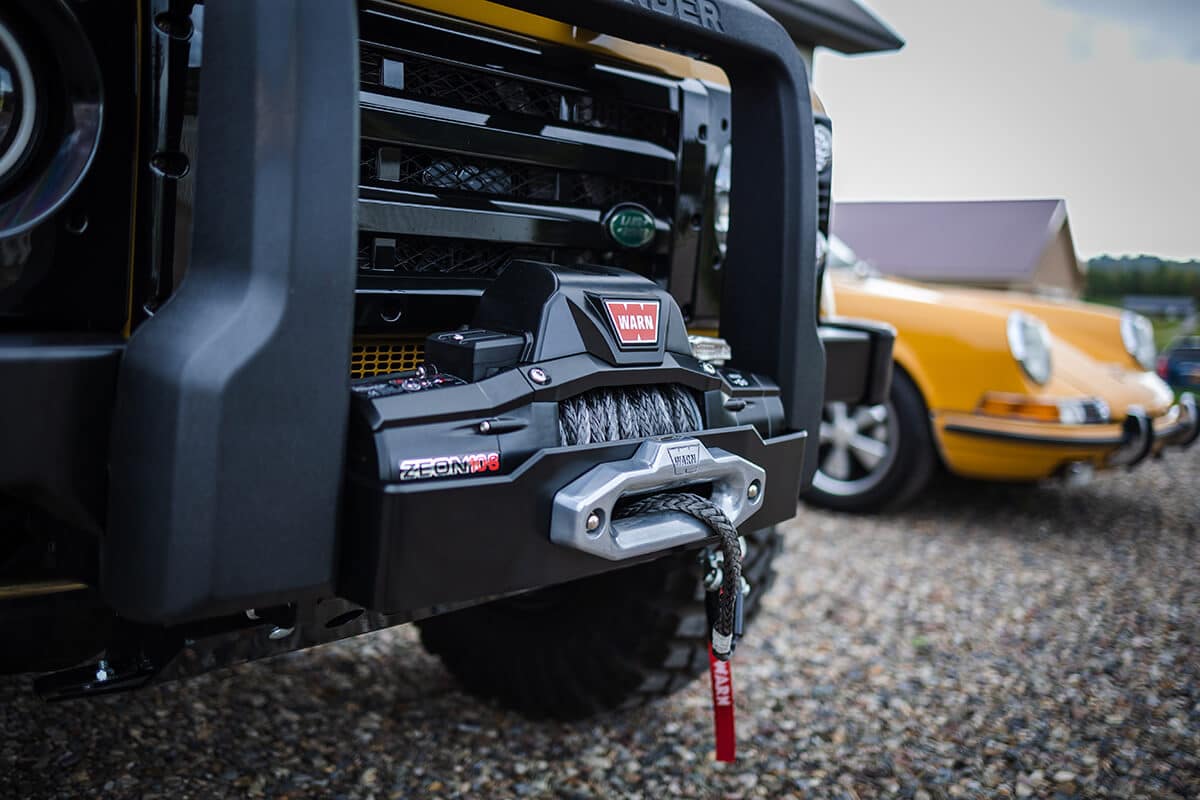

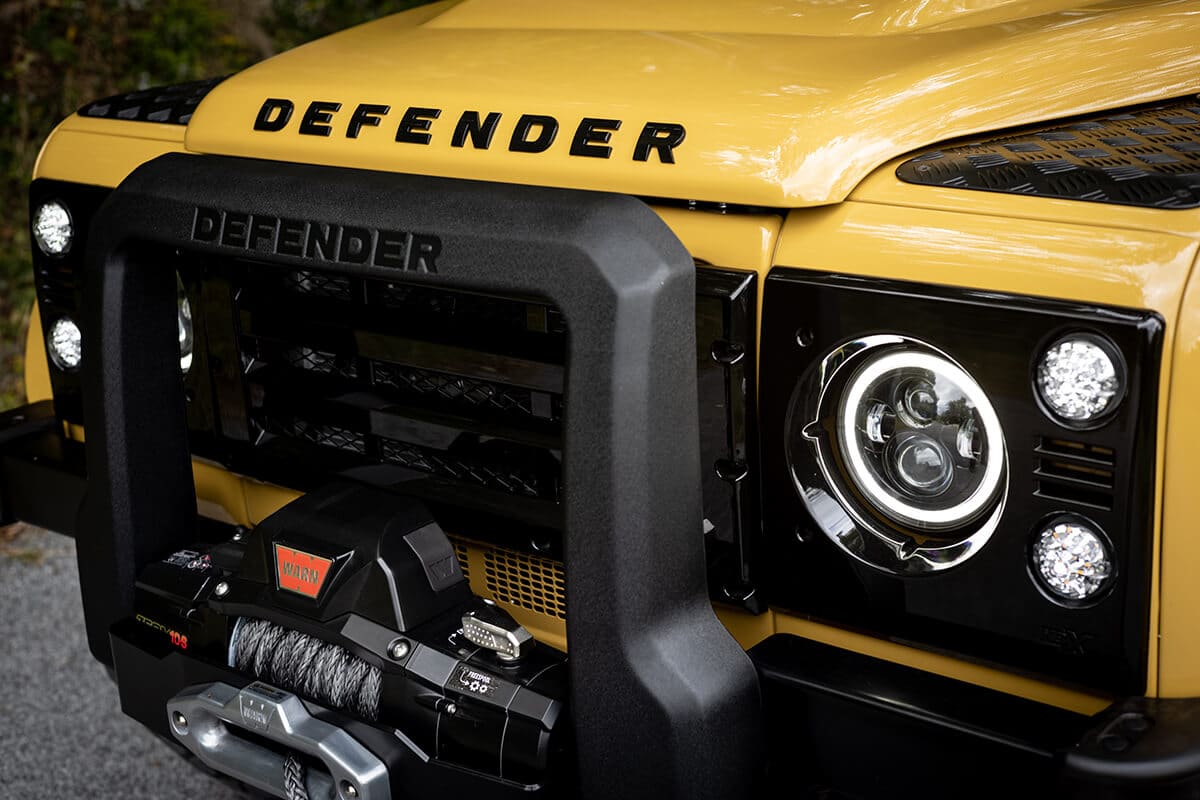

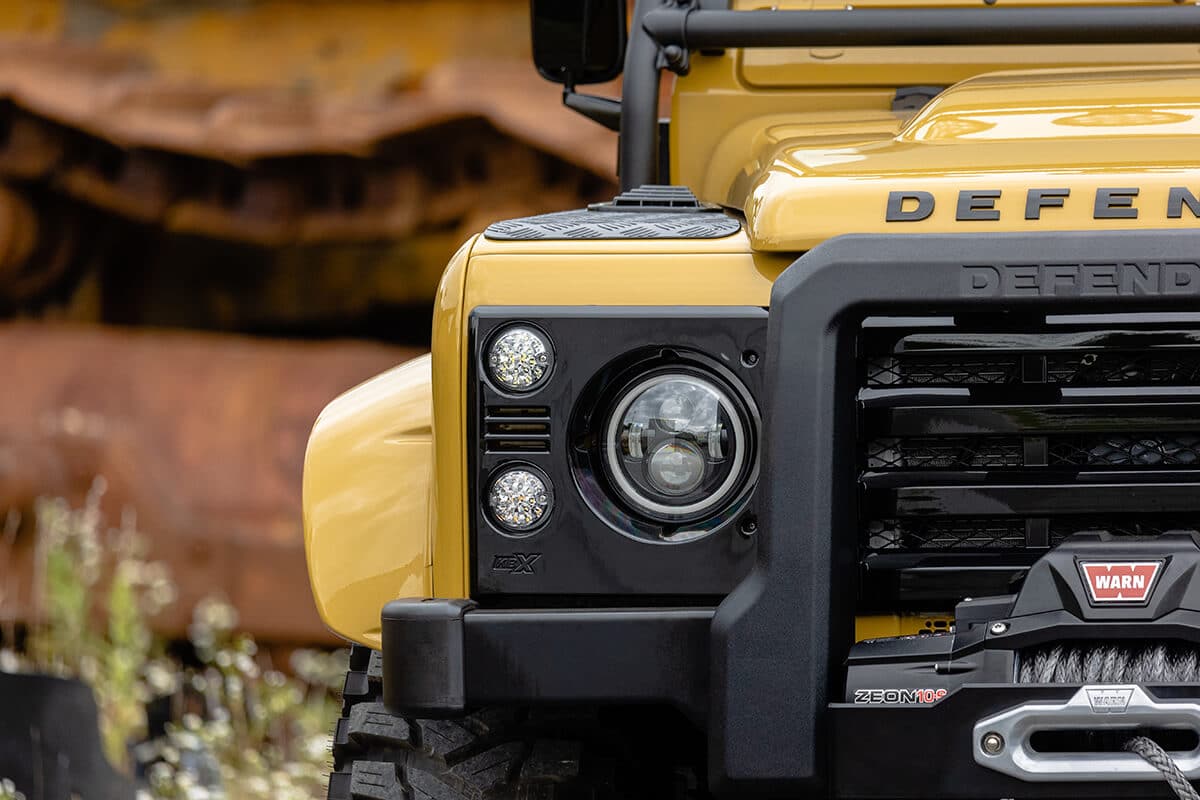

- Warn Zeon 10,000 lb Winch with Synthetic Rope
- KBX Slatted Grille and Top Vents

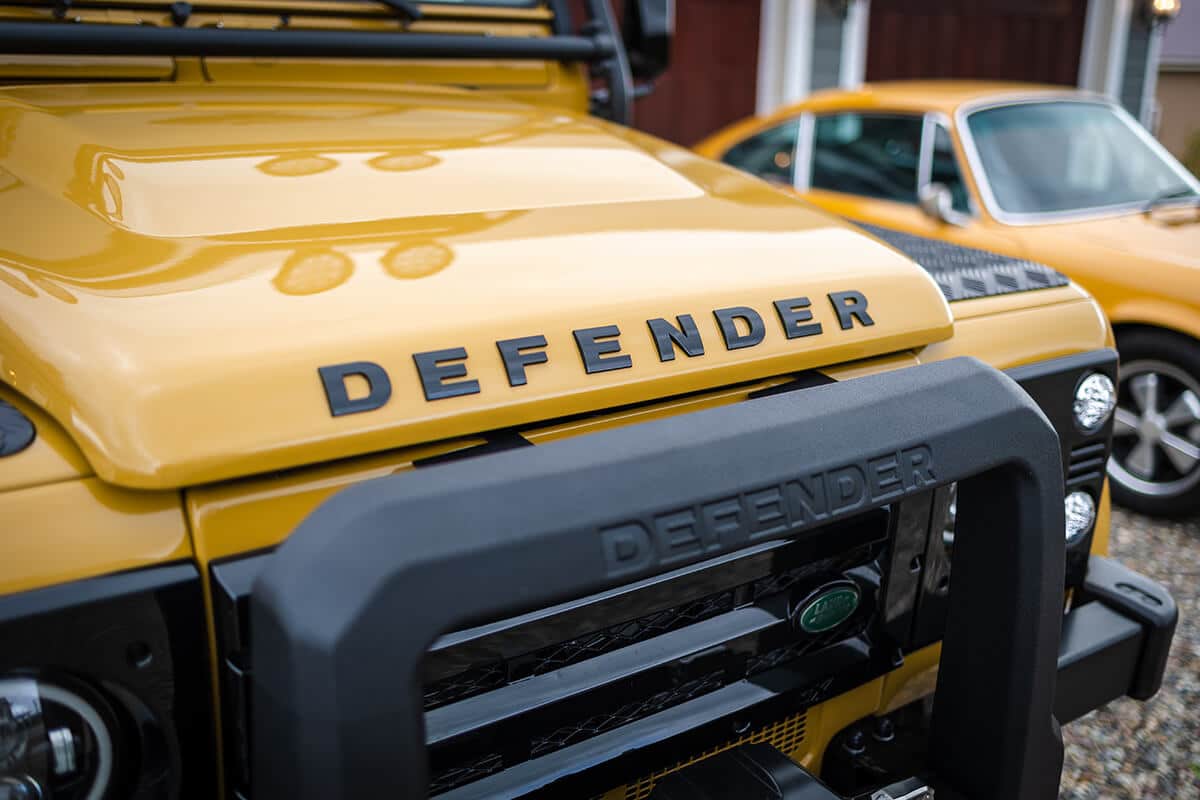

- Puma Bonnet

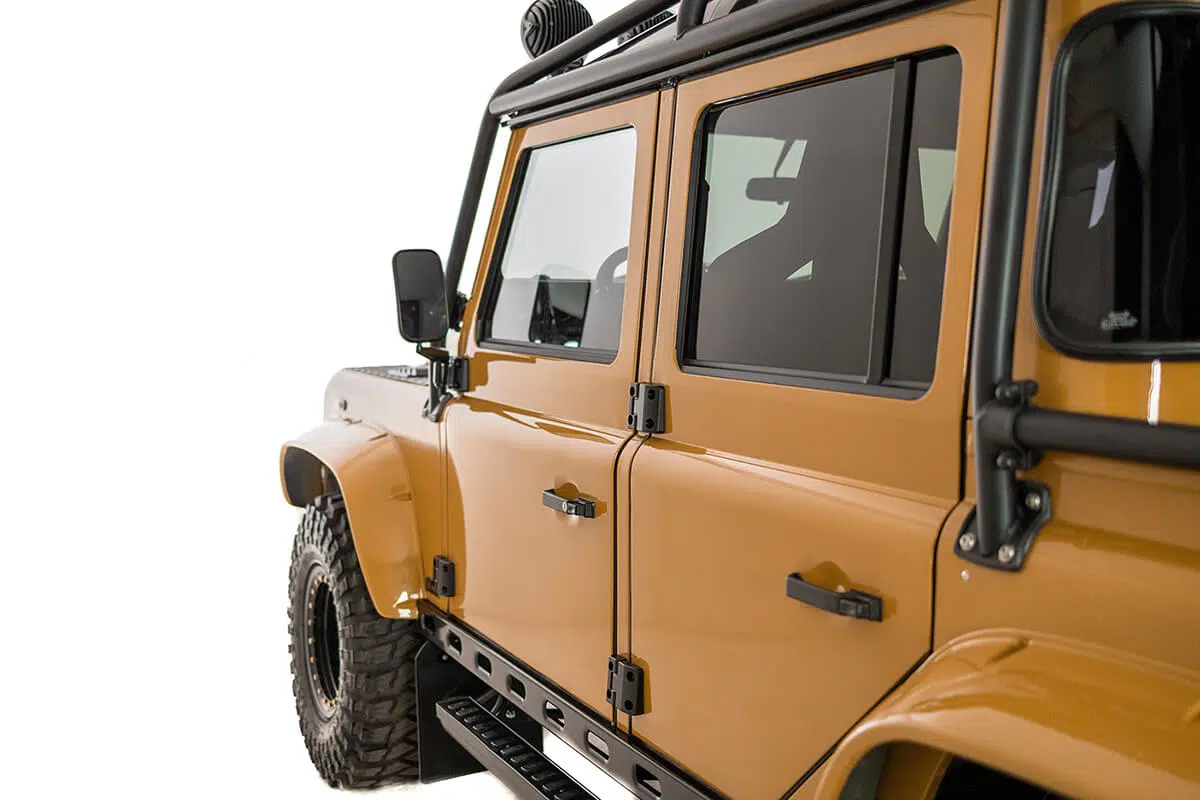

- Spectre-Style Wheel Arch Extensions, Body Color
- Checker Plate Wing Tops
- Billet Aluminum Bonnet and Door Hinges with Security Bolts
- Billet Aluminum Windscreen Brackets
- LED Lighting and Daytime Driving Lights
- Heated Side Mirrors
- Safety Devices Roof Rack

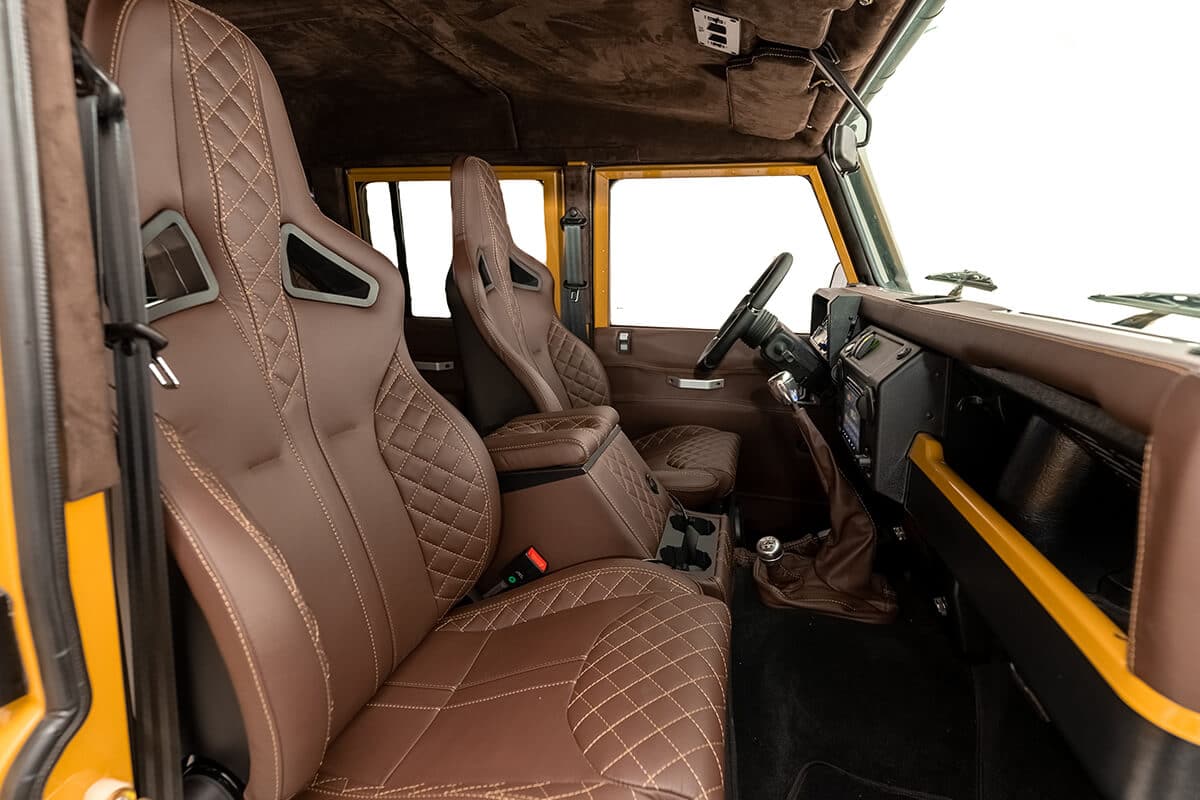

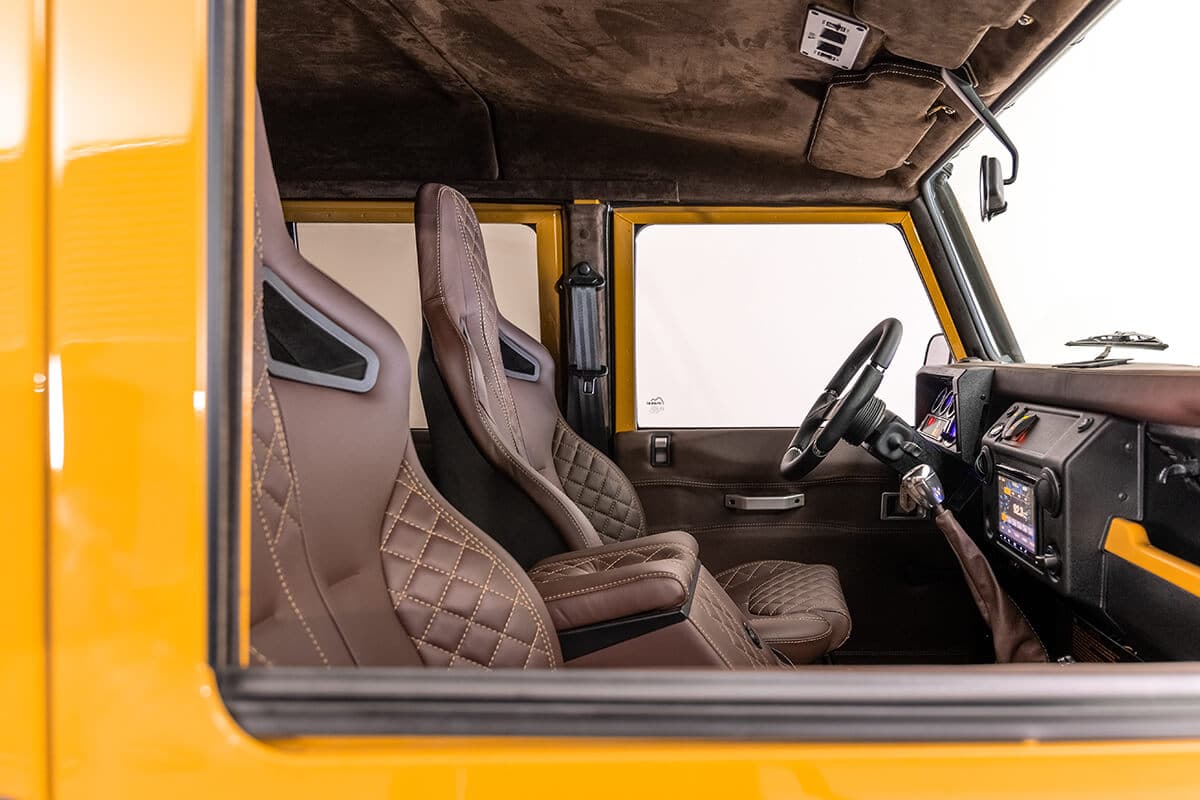

Interior

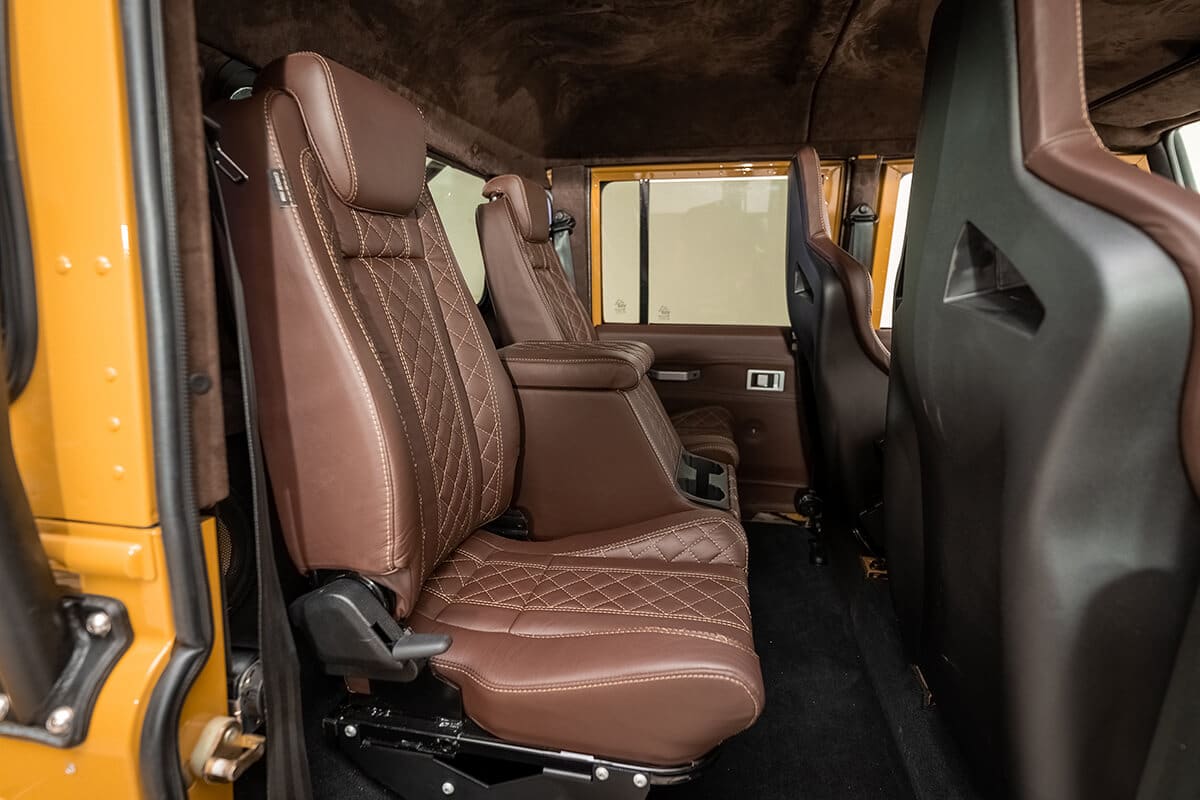

- Mulliner Interior Package (Full Leather Dash, Quilted Doors)
- Bespoke Chocolate Scottish Leather with Caramel Diamond Stitching
- Racing-Style Speed MK2 Heated Bespoke Leather Front Seats
- Two Rear Seats with Raised Custom Center Cubby
- Bespoke Leather Dash
- Hand-Built Walnut and Billet Aluminum Steering Wheel
- Coffee Brown Alcantara Headliner
- Coffee Brown Alcantara Sunvisors with Contrast Stitching
- Brushed Aluminum Package (Vents, Knobs, Door Sills, Gauges, Handles)
- LED Backlit Gauges
- Analog Smiths Clock
- LED (Daylight and Red) Courtesy Lighting
- Roll-Up Windows
Comfort
- Helderburg Air Conditioning (11,400 BTU) and Heating (10,800 BTU)
- High Performance Heating and Defrost Package
- Heated Windshield
- 5mm Glass Throughout
- Level 3 Extreme Sound and Weather Insulation
Technology and Security
- Alpine 7″ Touchscreen with Wireless Apple CarPlay, Bluetooth and Hands-Free
- Focal Component Crossover Hi-Fi Audio X6
- Focal 8″ Hi-Fi Subwoofer
- JL Audio 5 Channel 500 Watt Amplifier
- USB Ports
- GPS Theft Tracker with Geo Fencing
- Remote Disable and Vehicle Status Alerts via Smartphone
Every line above is the result of upgrades engineered in-house, found in no other custom or restomod Defender in the world.
